SLW210-AV Inground Lift | Wide Smartlift® | Shockwave™ Available
10,000 Lbs. CapacityStep into the next era for vehicle service and automotive lifts with Rotary’s new and exclusive Wide Smartlift® featuring All-Vehicle (AV) LIft Arms. A fusion of Rotary’s premier technology, this inground lift features the industry’s greatest vehicle access and clearance (and the lowest industry adapter height), along with wider plungers, a heavy-duty lifting capacity, and Rotary’s exclusive, low-maintenance EasyAccess™ cylinder design.
Performance Edge
Simply Lifts Everything.

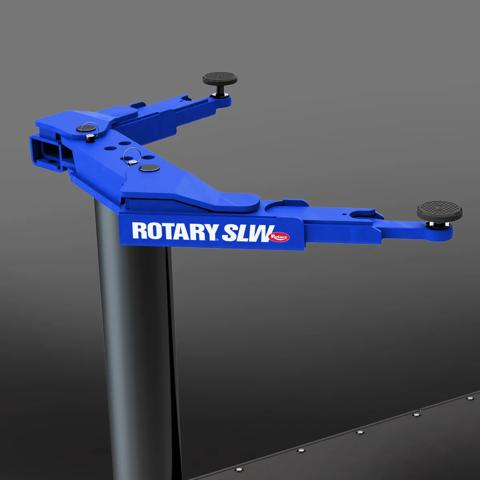

Wielding Rotary’s new All-Vehicle (AV) Lift Arms, this Wide Smartlift® was engineered to help shops quickly, safely, and easily service any vehicle thrown at them. Boasting the lowest minimum adapter height in the industry (3-3/8”), this lift’s AV ARMS™ allow for the effortless spotting of small, particular pickup points (or exotic vehicles) while providing all the clearance needed for safe EV battery removal.
Industry’s Greatest Vehicle Access & Clearance
Experience vehicle access like you’ve never seen before. Rotary’s new Wide Smartlift featuring AV ARMS™ provides over 48% more unobstructed under-vehicle access, enabling shops to quickly, safely, and easily service BEVs. It also reduces drive-over for low-profile cars and provides technicians with the space they need to service vehicles with greater efficiency and ergonomics.
Broadens Shop’s Serviceability
This Wide Smartlift’s 10,000-pound capacity will enable your shop to service any vehicle you throw at it (within its lifting capacity), including heavier-duty vans and trucks.
Exclusive, Easy-Maintenance System
Rotary’s patented EasyAccess cylinders allow all routine maintenance to be done from the floor level. This cuts equipment downtime by 75%, eliminating the need for forklifts or the removal of internal components.
Get the SLW210-AV
Interested in more information on In-Ground Lifts? Our solutions team is available to discuss your specific application and how this product can meet your needs.
Product Features
-

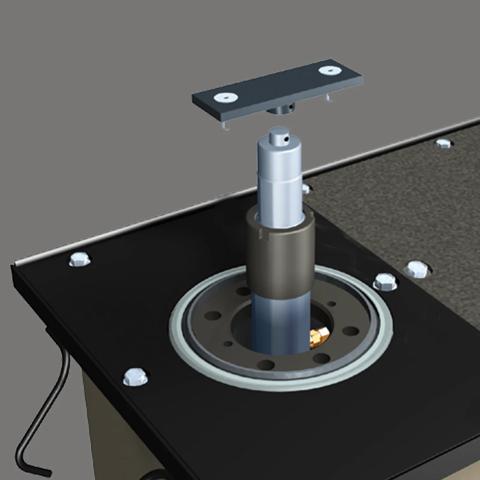

Easy Access™ Cylinders
Our patented Easy Access™ cylinders allow all routine maintenance at floor level without removing inground lift components. Without the need for forklifts or removal, downtime is cut by 75%.
-
Smartguard®
The proprietary Smarguard coating is applied to lift plungers and other select inground components to prevent corrosion and provide years of trouble-free use in your shop.
-
ShockWave™
Lifts equipped with Shockwave dramatically increase productivity in your shop. A combination of features lets you get the vehicle up and back down in half the time as a traditionally powered lift. DC battery power, Spotline™, and your choice of arm configurations help you service more jobs per bay, earning greater profit.
Product Specifications
| Lift Capacity | 10,000 lbs |
|---|---|
| Max Rise* 71" cylinder stroke | 75-3/16" to 76-3/8" |
| Overall Width | 119-5/8" |
| Drive-Thru Clearance | 88-1/16" |
| Minimum Arm Reach | 16-11/16" |
| Maximum Arm Reach | 44-1/2" |
| Minimum Adapter Height from Floor | RA Adapters: 3-7/8" | TA Adapters: 4-1/8" |
| Ceiling Height Minimum | Required ceiling height equals rise with tallest adapter extensions plus height of vehicle |
| Voltage Single Phase | 208-230V | 110V with SHOCKWAVE |
| Electrical Usage Ø | .01kWh per cycle |
| Guide Plunger Diameter | 8-1/2" |
| Time of Full Rise / Descent | With SHOCKWAVE** | 53 second/24 seconds | 25 seconds/ 19 seconds |
