V-REX Scissor Lift | Heavy-Duty Vertical Rise Lift
80,000 Lbs. CapacityThe V-REX is a vertical-rise platform scissor lift that offers clear spans of space in and around a massive lifting structure. With capacities between 44,000 and 80,000 pounds, this lift is designed to pick up large trucks, heavy equipment, and even fire trucks filled with water (within the rated capacity).
Performance Edge

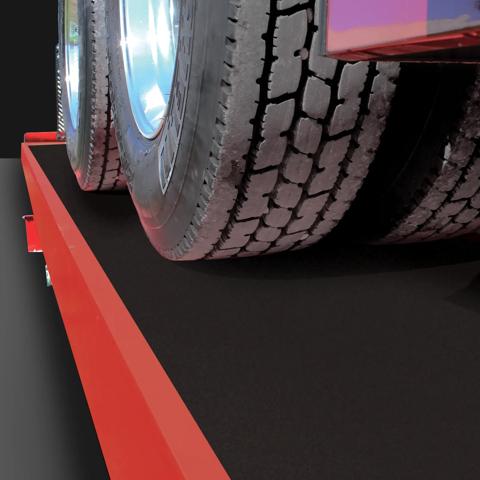

Industry’s Widest Platform Top
The V-Rex has the widest platform top on the market, delivering generous space for larger vehicle tires, coupled with a non-stick surface to assure lift safety and security.

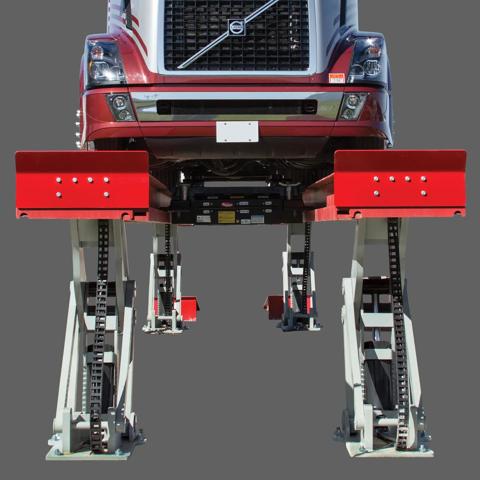

Open-Through Design

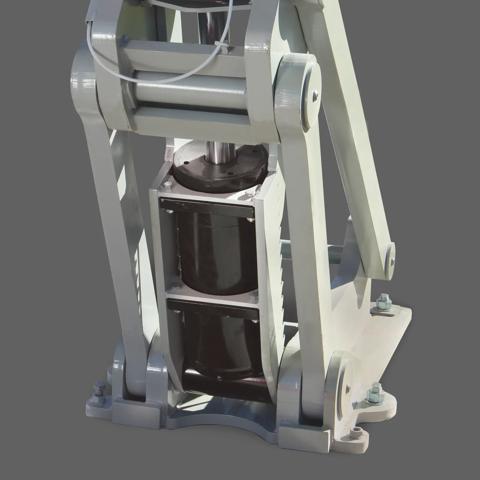

Our open-through design gives you ultimate clearance around the lift, while the specially designed platforms are engineered with the industry’s lowest deflection rates. A brand-new leg design manages all this heavy lifting on rotational hinge links. Limited sliding components and heavy-duty bearings ensure a long lift life. These same legs move rotationally, optimizing efficiency while providing strength.
Internal Stroke Measuring
A patent-pending internal stroke measuring system keeps the platform level while operating. This system is housed in the cylinder, protected from the elements, and rated for submersion. Our high-strength, abrasion-resistant steel locking system further protects the short-stroke cylinder. The proven negative rake system prevents slipped locking hazards with other lifts. These features again prove that Rotary engineers every detail in the lifts we build. Rotary is the industry’s lift leader, creating the V-REX, the best heavy-duty platform scissor lift on the market.
Get the V-REX
Interested in more information on Mid-Rise Lifts? Our solutions team is available to discuss your specific application and how this product can meet your needs.
Product Features
-
Industry's Strongest Torque Box
This lift has the strongest torque box design in the industry. Engineered tubular steel creates a rigid platform perfect for heavy loads or alignment.
-
High Performance Features
Not only do you get the beast of vehicle lifts, you also get three heavy-duty lifting capacities with five runway lengths, a 77” vertical rise, simple, easy-to-understand controls, three installation configurations (surface, recessed pit, or flush), extra-wide non-stick platforms, 10” extended, low-profile ramps standard, and ALI Gold Certified!
Product Specifications
| VR44, VR64, VR80 | The V-REX is a vertical rise platform scissor lift that offers clear spans of space in and around a massive lifting structure. With capacities between 44,000 pounds and 80,000 pounds, this lift is designed to pick up large trucks, heavy equipment and anything else you can think to drive on it, like FIRE TRUCKS filled with water! (within the rated capacity). |
|---|---|
| Capacity | 44000 lbs, 64000 lbs, 80000 lbs |
| Maximum Rise Bottom of base to runway top | 77 3/4” |
| Collapsed Height | 16 – 1/4” |
| Rise Time | 90 seconds |
| Runway Lengths | 28’, 30′, 32’, 36’, 48’ |
| Overall Lengths With standard 10’ approach ramps | 38’, 40′, 42’, 46’, 58’ |
| Width of Runway | 32" |
| Overall Width | 109" |
| Distance Between Runways | 45" |
| Motor | 15hp / 20 hp |
| Electrical Standard | 3ph, 208-230/460/575 |
| Number of legs | 4 |
| Minimum Floor Thickness | 6" |
| *44K, 64K and 80K capacities for all runway lengths. 44K and 64K capacities for 36’ runway length only. |
