X14 Scissor Lift | Drive-On Lift
14,000 Lbs. CapacityRotary’s 14,000-pound scissor offers an impressive 193-inch max wheelbase. This configuration can handle vehicles with wheelbases as little as 85.5 inches to larger trucks and vehicles up to 198 inches. The X14 open front and rear design creates space-saving, working clearance through the entire middle of the lift, with open access points for easy movement.
Performance Edge
Longer Wheelbase Range
Rotary’s X14 scissor lift is designed with longer runways to service a variety of vehicles. It will service cars and light commercial trucks up to a 198” wheelbase! Now, you can service the smallest cars to the largest mid-size trucks and vans on one versatile lift.

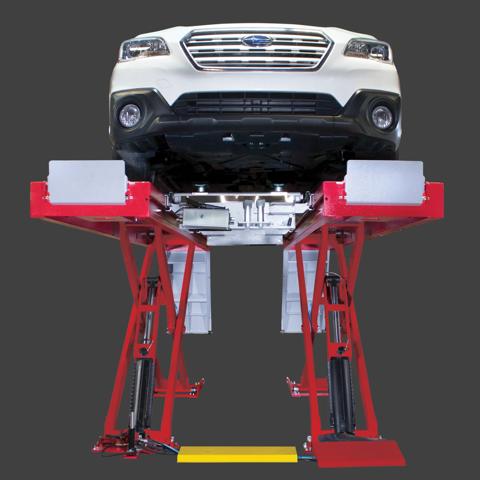

Open Front & Back
The X14 saves bay space and provides greater technician access with true vertical lifting and open access points, creating a working clearance through the entire middle of the lift. The front, rear, and side-to-side through allow technicians access to multi-bay projects and toolboxes. The recessed installation option creates a clean approach and bay area.

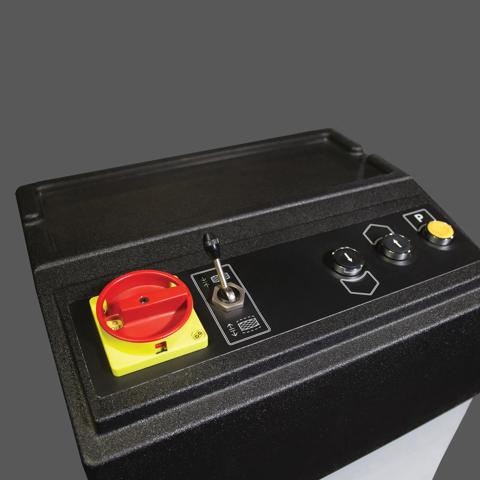

Intuitive Control Unit
The X14 is built with robust, simple buttons and switches for a long life. It includes a single-point rear-slip lock switch.
Get the X14
Interested in more information on Scissor Lifts? Our solutions team is available to discuss your specific application and how this product can meet your needs.
Product Features
-
Winning Features
The X14 has a simple hydraulic system that maintains level platforms during the lifting cycle. Mechanical locks with 14 locking positions automatically engage and pneumatically release, ensuring maximum security when the lift is raised. Automatic wheel chocks engage when the lift is raised. All pivot points are made with self-lubricating bushings for long life. The unit comes with a base plate leveling system for easy installation.
Product Specifications
| Specification | X14 |
|---|---|
| Capacity | 14,000 lbs. (6350kg) |
| Maximum Rise* | 72-3/4″ (1848mm) Surface Mounted |
| Lowered Height | 10-3/4″ (275mm) |
| Overall Length | 277″ (7035mm) |
| Overall Width | 91″ (2310mm) |
| Runway Width | 25-1/2″ (648mm) |
| Width Between Platforms | 40″ (1015mm) |
| Runway Length | 216″ (5486mm) |
| Max. Wheelbase | 198″ (5038mm) |
| Max. Two Wheel AlignmentMax Four Wheel AlignmentMin. Four Wheel Alignment | 195″ (4953mm)193″ (4902mm)85-1/2″ (2172mm) |
| Motor/Voltage | 5 hp / 230 volt / Single Phase |
| Time of Full Rise | 77 seconds |
| Lowering Time | 47 sceonds |
| Compressed Air Connection | 85-110 psi |
| Recommended Bay Size | 14′ x 27′ (4.27m x 8.23m) |
| * Rise measures floor to top of runway at full stroke. |
