HDI Series Inground Lifts Inground Lift
Whether you are serving school buses, firetrucks, or other large commercial vehicles, Rotary’s redesigned Heavy Duty In-Ground (HDI) Lifts are an affordable and space-saving solution for engaging large vehicles. Featuring 25,000-pound capacity pistons configured to lift 50,000 lbs. (HDI225) or 75,000 lbs. (HDI325), the HDI Series Lifts are engineered to serve the needs of your fleet service repair shop.
Performance Edge

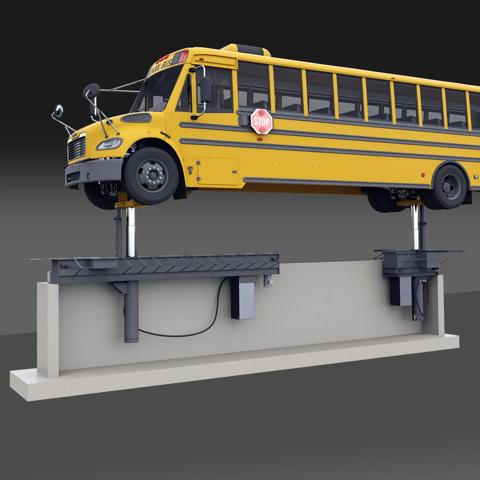

Concrete Containment System
Designed and installed in its own concrete containment system, the HDI225/325 can be used with a shop’s existing concrete vault, reducing installation costs significantly – saving up to 33% compared to traditional lift installs*
*Savings based on the ability to use an existing concrete vault.

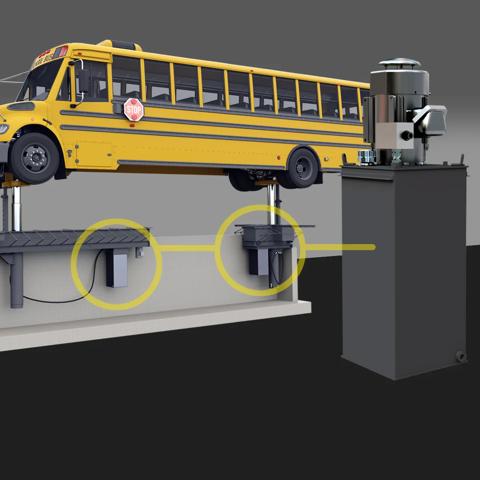

In-Pit Power Unit
Located in the pit, Rotary’s HDI Series Lifts’ power units are less obstructive, allowing for more workspace and a quieter work environment.

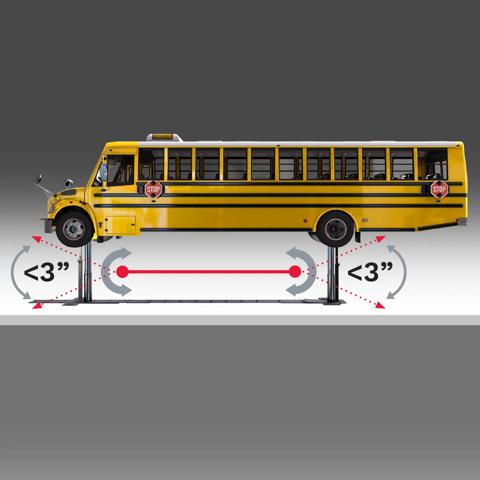

Automatic Lifting Equalization
Engineered to protect your techs and vehicles, Rotary’s HDI Series lifts eliminate the risk of out-of-level vehicles falling thanks to their built-in standard potentiometer, which automatically shuts off the lifts when out of level by 3” or more.

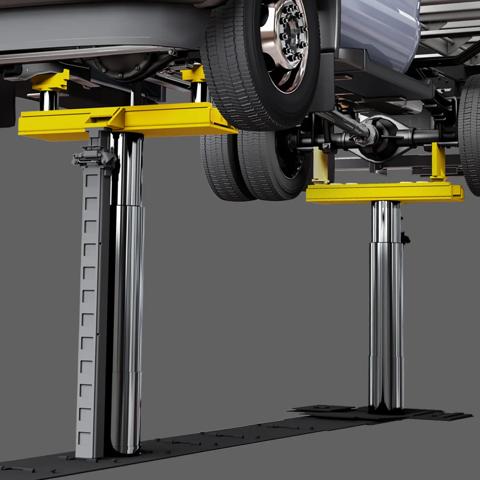

Universal Saddles & Adapters
Rotary offers one of the industry’s largest adapter and insert markets, with specialized saddle designs to meet the variety of challenges heavy duty shops face each day.

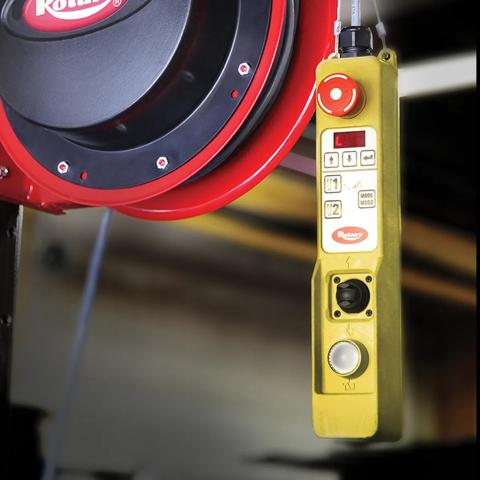

Optional Wired Pendant Control
Rotary’s patented Joystick-Equipped Pendant Control keeps techs safe and in control. It enables them to operate all the lift’s features away from the console, providing increased visibility and vehicle lifting safety.
Get the HDI Series Inground Lifts
Interested in more information on In-Ground Lifts? Our solutions team is available to discuss your specific application and how this product can meet your needs.
Product Features
-
Dual Chain Drive System
Ensures easy, reliable movement while raising and lowering.
-
Programmable Vehicle Presets
This feature allows users to program in vehicle presets to save time when starting jobs and shifting tasks within jobs.
-
Revolutionary Concrete Footer Slab
A more environmentally friendly design offers a base rebar mat and a 25 percent reduction in concrete. The Abrasion Resistant Hose Guide keeps the hose out of the way of the moving piston—there are no moving parts to break.
Product Specifications
| Lift Capacity | HDI225 - 50,000 lbs | HDI325 - 75,000lbs |
|---|---|
| Lifting Capacity per Piston | 25,000 lbs |
| Rise* (Front & Rear Piston) | 70" |
| Rise* (Center Piston) | HDI225 - N/A | HDI325 - 70" |
| Power Unit | 5hp (7.457kw) |
| Pressure | 420 / 455 psi |
| Oil Displacement | 19.3 gallon |
| Standard Adapter Adjustment | 17 15/16" - 44 1/4" |
| *Rise measures the highest position of the supplied adapters from floor to full cylinder stroke. |
